To handle 1/4" through 1/2" I.D. hose Lubrication / Air / Water / Assembly Operations / Washdown / Air Tools / General Industrial Applications
• Roll-formed channel frame for heavy-duty applications.
• Non-sparking ratchet assembly.
• Declutching arbor to prevent damage from reverse winding.
• Standard inlet: 90° balanced pressure swivel joint, 1/2" female NPT threads.
• Standard outlet: 1/2" female NPT and BSP threads.
• Standard pressures to 3,000 psi (207 bar), available up to 10,000 psi (690 bar).
• Standard fluid temperatures from -40° F to +250 °F (-40° C to +121° C). Optional temperature ratings available - consult factory.
• 4-way roller assembly.
• SR and VR roller positions: swivel joint is standard on the right,
TR roller positions:
swivel joint is standard on the left. Optional configurations. are available, must specify,
Constant tension is available; consult factory.
Concept and Structure

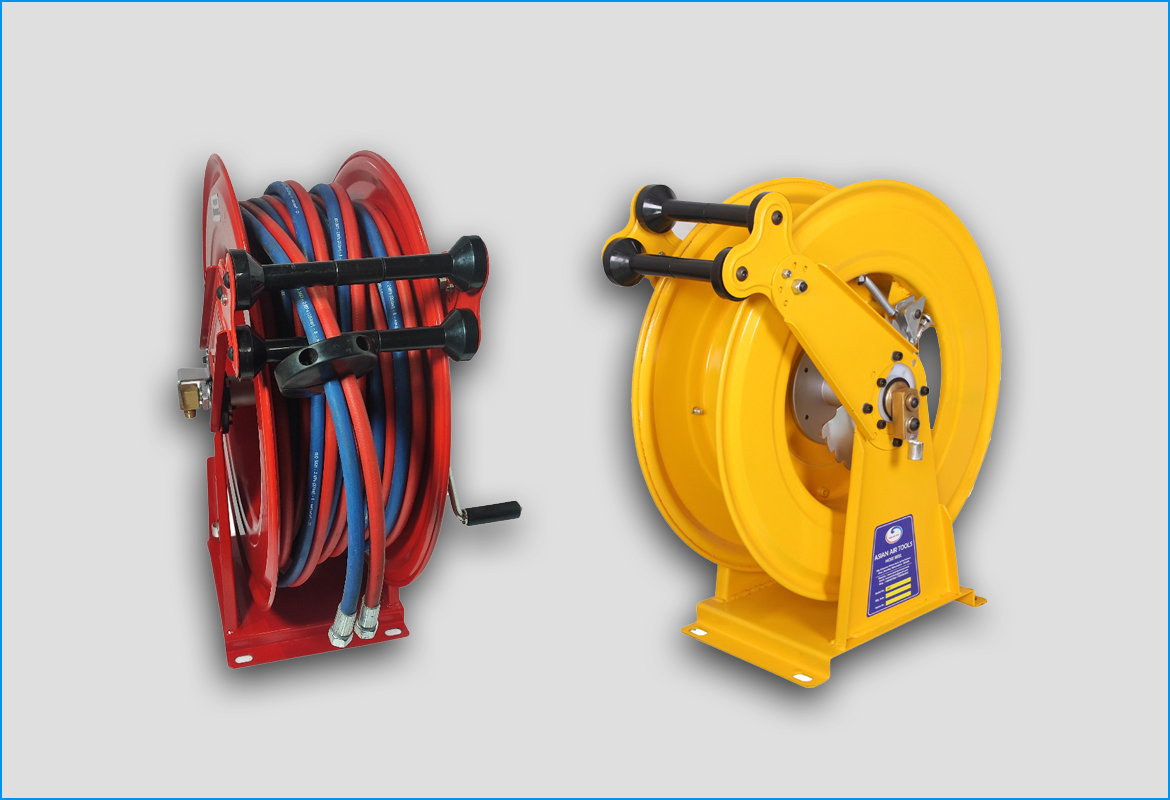

• Reliable Water hose reels are available with hand crank retraction, motor rewind or Auto rewind options.
• Service vehicles, workbenches, vertical walls and beams, vehicle lift systems, machine tools, and other things are used frequently.
• Strong horizontal surface mount bearings with lubrication for simple rewind.
• Multi-position non-sparking lock ratchet mechanism secures cable at desired length
Features
• HDD Steel grade heavy duty construction
• Strength & safety are provided by curled edges & reinforced discs.
• Multipurpose guide arm can be mounted on a wall, the floor, the ceiling, or on a vehicle required position.
• Leading 1-year manufacturer's limited warranty
• Made in India. - Supplied and backed globally
Application
• Industries for bottling and processing food
• Cleaning machines in pharmaceutical industries
• Delivery of Potable and Non-Potable Water
• Service Station and Garages.
• Fire Trying to extinguish
• Pressure Washer
• Service Truck Mount, Trailers, and Skids
Specification OPEN MODEL
| Model No. | Hose Size ID | Hose Length (Mtr) | Max Press (Bar) |
| BI-WR-1410 | 1/4" | 10 | 30 |
| AAT-WHR-1415 | 1/4" | 15 | 30 |
| AAT-WHR -1420 | 1/4" | 20 | 30 |
| AAT-WHR -1425 | 1/4" | 25 | 30 |
| AAT-WHR -1430 | 1/4" | 30 | 30 |
| AAT-WHR -3810 | 3/8" | 10 | 30 |
| AAT-WHR -3815 | 3/8" | 15 | 30 |
| AAT-WHR 3820 | 3/8" | 20 | 30 |
| AAT-WHR -3825 | 3/8" | 25 | 30 |
| AAT-WHR -3830 | 3/8" | 30 | 30 |
| AAT-WHR -1210 | 1/2" | 10 | 30 |
| AAT-WHR -1215 | 1/2" | 15 | 30 |
| AAT-WHR -1220 | 1/2" | 20 | 30 |
| AAT-WHR -1225 | 1/2" | 25 | 30 |
| AAT-WHR -1230 | 1/2" | 30 | 30 |
| AAT-WHR -3410 | 3/4" | 10 | 30 |
| AAT-WHR -3415 | 3/4" | 15 | 30 |
| AAT-WHR -3420 | 3/4" | 20 | 30 |
| AAT-WHR -3425 | 3/4" | 25 | 30 |
| AAT-WHR -3430 | 3/4" | 30 | 30 |
| AAT-WHR -0110 | 1" | 10 | 30 |
| AAT-WHR -0115 | 1" | 15 | 30 |
| AAT-WHR -0120 | 1" | 20 | 30 |
| AAT-WHR -0125 | 1" | 25 | 30 |
| AAT-WHR -0130 | 1" | 30 | 30 |
| Model No. | Hose Size ID | Hose Length (Mtr) | Max Press (Bar) |
| AAT-WHR -C1410 | 1/4" | 10 | 30 |
| AAT-WHR -C1415 | 1/4" | 15 | 30 |
| AAT-WHR -C1420 | 1/4" | 20 | 30 |
| AAT-WHR -C3810 | 3/8" | 10 | 30 |
| AAT-WHR -C3815 | 3/8" | 15 | 30 |
| AAT-WHR -C3820 | 3/8" | 20 | 30 |
| AAT-WHR -C1210 | 1/2" | 10 | 30 |
| AAT-WHR -C1215 | 1/2" | 15 | 30 |
| AAT-WHR -C1220 | 1/2" | 20 | 30 |
| AAT-WHR -11410 | 1-1/4" | 10 | 30 |
| AAT-WHR -11415 | 1-1/4" | 15 | 30 |
| AAT-WHR -11210 | 1-1/2" | 10 | 30 |
| AAT-WHR -11215 | 1-1/2" | 15 | 30 |
| AAT-WHR -0210 | 2" | 10 | 30 |
