Introduction
Asian Air Tools stands at the forefront of innovation in the machining tools industry, introducing the versatile and highly efficient Air Hose Reels. Designed for a wide array of applications, these reels combine functionality with durability, ensuring optimal performance in any setting.
Manufacturing

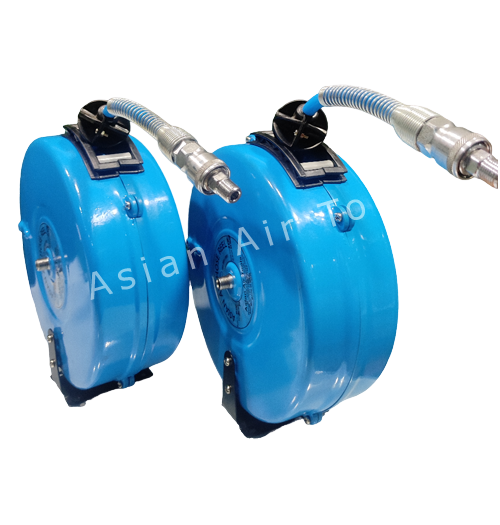

Crafted with precision, the Closed Type Air Hose Reel by Asian Air Tools features a compact design that's easy to install on walls, floors, vehicles, and ceilings. Its lightweight structure is complemented by a high-quality coil spring and a special spring made of SS, moulded metallic ratchet , facilitating easy one-person installation. The multi-position lock ratchet mechanism secures the hose at the desired length, embodying convenience and reliability.
Why Asian Air Tools is Best
Asian Air Tools is distinguished by its commitment to providing solutions that meet the needs of diverse industrial environments. Our Air Hose Reels are designed to enhance workspace efficiency, offering quick and safe hose rewinding which contributes to a clean and organized working area, minimizing wear and potential damage to the hoses.
Quality
The quality of Asian Air Tools' Air Hose Reels is unmatched, with HDD Steel grade heavy-duty construction ensuring strength and safety. The powder coating finish, standard in blue but available in other colours per customer requirements, adds durability and resistance to the elements, making it a superior choice for any industrial application.
Performance
Asian Air Tools' Air Hose Reels stand out for their robust performance, suitable for general industrial applications, including fabrication shops, vehicle assembly lines, and manufacturing plants. They significantly reduce unsafe conditions by keeping hoses neatly stored and readily available for use, boosting productivity on the job site.
Innovative and Creative

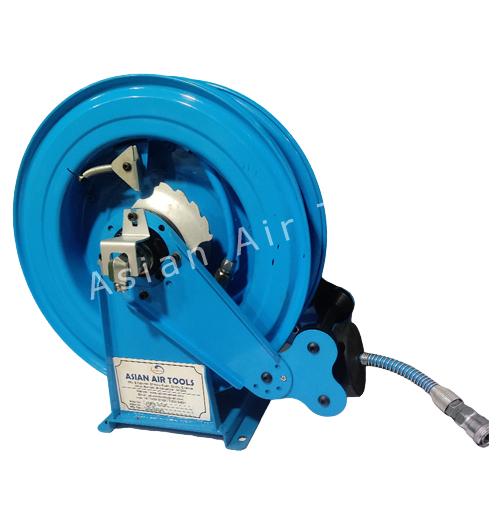

With a focus on innovation, Asian Air Tools offers air hose reels with various retraction mechanisms, including hand crank, motor rewind, or Auto rewind options, and multiple mounting positions (SR, VR, TR) , catering to every workspace's specific needs. This creative approach ensures that our products are not only functional but also adaptable to any environment.
Applications
Our Air Hose Reels are essential in a wide range of settings, from service stations and garages to fabrication and manufacturing facilities , providing efficient solutions for the transfer of compressed air , operating pneumatic tools , and enhancing safety and cleanliness in workplaces.
Asian Air Tools' Air Hose Reels are the epitome of quality, performance, and innovation. Designed to meet the rigorous demands of modern industrial applications, they offer a reliable and efficient way to manage air hoses, improving safety, productivity, and operational efficiency. With Asian Air Tools, you can expect superior quality and durability, making our air hose reels a valuable addition to any industrial setting.
| SR.NO | MODEL NO | HOSE SIZE (ID X OD) | DESCRIPTION | LENGTH | PRESSURE |
|---|---|---|---|---|---|
| 1 | AAT-AHR-5810 | 5.5 X 8 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 10 | 10 |
| 2 | AAT-AHR-5815 | 5.5 X 8 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 15 | 10 |
| 3 | AAT-AHR-5820 | 5.5 X 8 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 20 | 10 |
| 4 | AAT-AHR-5825 | 5.5 X 8 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 25 | 10 |
| 5 | AAT-AHR-8125 | 8 X 12 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 4.5 | 10 |
| 6 | AAT-AHR-81210 | 8 X 12 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 10 | 10 |
| 7 | AAT-AHR-81215 | 8 X 12 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 15 | 10 |
| 8 | AAT-AHR-81220 | 8 X 12 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 20 | 10 |
| 9 | AAT-AHR-81225 | 8 X 12 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 25 | 10 |
| 10 | AAT-AHR-81230 | 8 X 12 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 30 | 10 |
| 11 | AAT-AHR-101410 | 10 X 14 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 10 | 10 |
| 12 | AAT-AHR-101415 | 10 X 14 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 15 | 10 |
| 13 | AAT-AHR-101420 | 10 X 14 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 20 | 10 |
| 14 | AAT-AHR-101425 | 10 X 14 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 25 | 10 |
| 15 | AAT-AHR-101430 | 10 X 14 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 30 | 10 |
| 16 | AAT-AHR-121610 | 12 X 16 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 10 | 10 |
| 17 | AAT-AHR-121615 | 12 X 16 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 15 | 10 |
| 18 | AAT-AHR-121620 | 12 X 16 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 20 | 10 |
| 19 | AAT-AHR-121625 | 12 X 16 | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Lock Mechanism With Hose Guider Spring Stopper MS Powder Coated | 25 | 10 |
| SR NO | MODEL NO | HOSE SIZE ID | DESCRIPTION | LENGTH | PRESSURE |
|---|---|---|---|---|---|
| 1 | AAT-AHR-1410 | 1/4 “ | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 10 | 30 |
| 2 | AAT-AHR-1415 | 1/4 “ | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 15 | 30 |
| 3 | AAT-AHR-1420 | 1/4” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 20 | 30 |
| 4 | AAT-AHR-1425 | 1/4” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 25 | 30 |
| 5 | AAT-AHR-1430 | 1/4" | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 30 | 30 |
| 6 | AAT-AHR-3810 | 3/8” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 10 | 30 |
| 7 | AAT-AHR-3815 | 3/8” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 15 | 30 |
| 8 | AAT-AHR-3820 | 3/8” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 20 | 30 |
| 9 | AAT-AHR-3825 | 3/8” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 25 | 30 |
| 10 | AAT-AHR-3830 | 3/8” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 30 | 30 |
| 11 | AAT-AHR-1210 | 1/2” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 10 | 30 |
| 12 | AAT-AHR-1215 | 1/2” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 15 | 30 |
| 13 | AAT-AHR-1220 | 1/2" | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 20 | 30 |
| 14 | AAT-AHR-1225 | 1/2” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 25 | 30 |
| 15 | AAT-AHR-1230 | 1/2” | ASIAN AUTOREWIND AIR HOSE REEL CNC Make Shaft Spring Loaded Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 30 | 30 |
| SR NO | MODEL NO | HOSE SIZE ID | DESCRIPTION | LENGTH | PRESSURE |
|---|---|---|---|---|---|
| 1 | AAT-MHR-1410 | 1/4” | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 10 | 22 |
| 2 | AAT-MHR-1415 | 1/4" | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 15 | 22 |
| 3 | AAT-MHR-1420 | 1/4” | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 20 | 22 |
| 4 | AAT-MHR-1425 | 1/4" | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 25 | 22 |
| 5 | AAT-MHR-1430 | 1/4" | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 30 | 22 |
| 6 | AAT-MHR-3810 | 3/8” | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 10 | 22 |
| 7 | AAT-MHR-3815 | 3/8” | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 15 | 22 |
| 8 | AAT-MHR-3820 | 3/8” | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 20 | 22 |
| 9 | AAT-MHR-3825 | 3/8” | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 25 | 22 |
| 10 | AAT-MHR-3830 | 3/8” | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 30 | 22 |
| 11 | AAT-MHR-1210 | 1/2" | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 10 | 22 |
| 12 | AAT-MHR-1215 | 1/2" | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 15 | 22 |
| 13 | AAT-MHR-1220 | 1/2" | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 20 | 22 |
| 14 | AAT-MHR-1225 | 1/2" | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 25 | 22 |
| 15 | AAT-MHR-1230 | 1/2” | ASIAN MANUAL AIR HOSE REEL CNC Make Shaft Hand (Handle) Rewind Swivel Rotary Lock Mechanism Hose Guider Rubber Stopper Adjustable Bracket Mounting MS Powder Coated | 30 | 22 |
Specify roller position SR when reel will be :
Specify roller position VR when reel will be :
Specify roller position TR when reel will be :
